Recycling highly printed plastic films—such as polyethylene (PE), polypropylene (PP), and biaxially oriented polypropylene (BOPP)—requires advanced equipment and specialized processes. These materials often contain inks, coatings, and contaminants that can compromise the quality of recycled pellets if not properly removed. Below is an in-depth look at effective recycling solutions for printed films in industrial settings.
Challenges in Recycling Printed PE and PP Films
Printed PE and PP films pose significant challenges:
- Ink and coating residues degrade the quality of the recycled polymer.
- Lightweight and flexible film structures can tangle in conventional machinery.
- Contaminants such as dirt, labels, adhesives, and other plastics must be thoroughly removed to ensure pellet integrity.

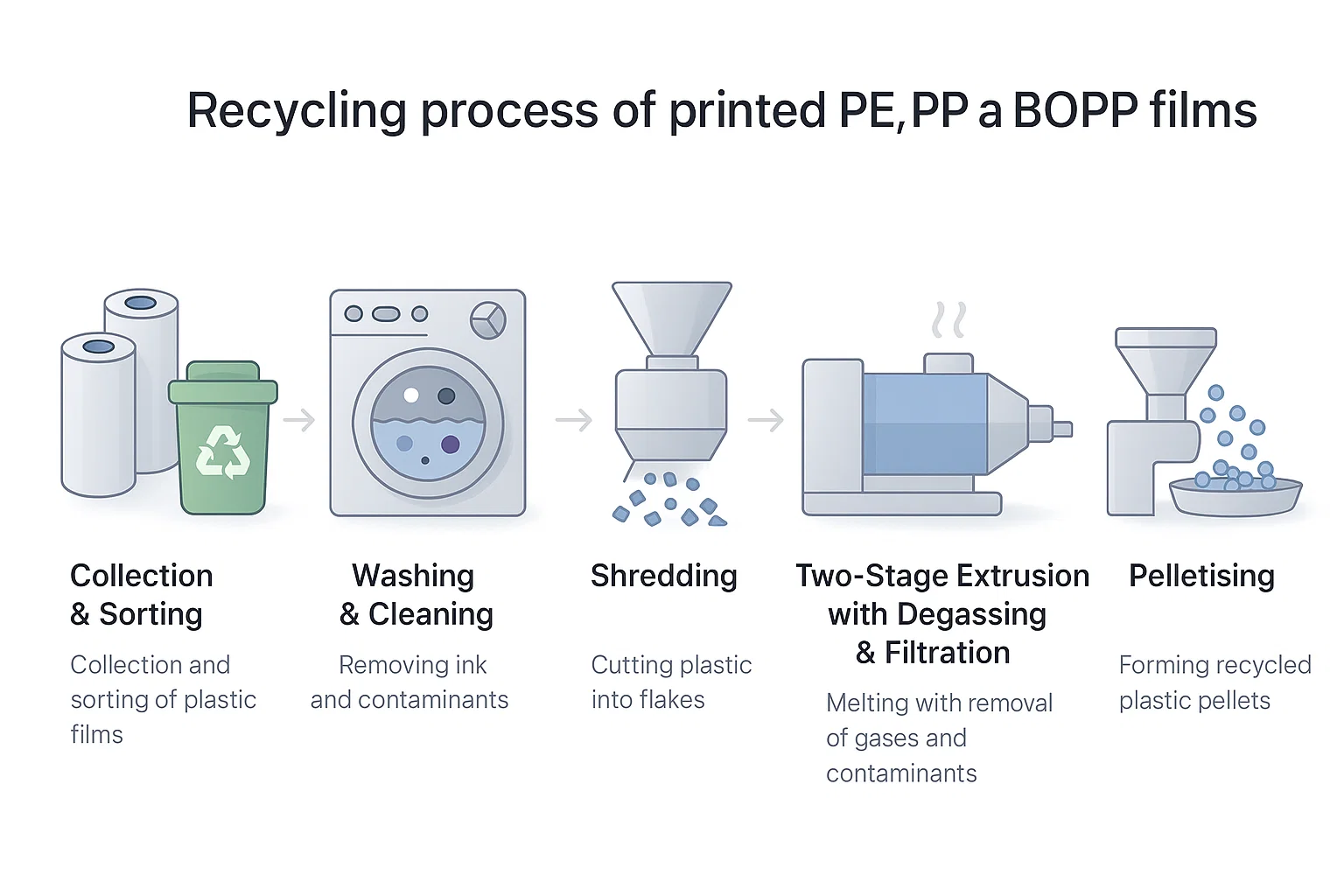

Industrial Film Recycling Process
1. Collection and Sorting
Films are sourced from post-consumer waste, industrial scrap, or agricultural use. Sorting by polymer type (PE vs. PP), and occasionally by color, is essential to achieve material uniformity and reduce cross-contamination.
2. Washing and Decontamination
A robust washing process removes surface contaminants such as soil, food residue, adhesives, and loose inks. This step is critical for achieving clean input material.
3. Shredding and Preprocessing
Films are shredded into flakes to prepare them for extrusion. Pre-cutting increases surface area and aids in consistent melting and filtration.
4. Two-Stage Extrusion with Advanced Degassing
Cutting-edge systems like Repro-Flex Plus utilize a two-stage extruder equipped with:
- Multiple degassing zones to eliminate volatile ink residues and moisture.
- High-performance filtration units to remove fine impurities and coatings.
- Integrated cutter-compactor that agglomerates and feeds film flakes directly, improving output stability and energy efficiency.
5. Pelletising
The clean, filtered melt is converted into uniform, high-quality pellets that are ready for direct reuse in manufacturing, such as blown film or injection molding applications.
Advantages of Advanced Recycling for PE and PP Films
- High-quality recycled pellets are suitable for demanding applications.
- Lower energy consumption compared to traditional single-stage systems.
- Capability to process laminated and multilayer films, previously considered non-recyclable.
Recycling Printed and Metallised BOPP Films
Unique Challenges of BOPP Recycling
BOPP films often feature printed surfaces and metalized layers, complicating recycling. The base PP layer must be preserved while effectively stripping away inks and metal coatings.
Advanced BOPP Recycling Equipment
Recycling systems specifically designed for BOPP—such as enhanced versions of Repro-Flex Plus—feature:
- Additional extruders and filtration units to tackle heavy ink loads and metallization.
- Extended degassing capabilities to minimize thermal degradation and odor formation.
Innovations in BOPP Recycling
The adoption of PU-based printing inks has significantly improved recycling outcomes:
- Enables production of color-stable, odorless, and defect-free recyclates.
- Suitable for reuse in flat films and thermoformed packaging without major process adjustments.
Applications for Recycled BOPP
Recycled BOPP granules are commonly used in:
- Packaging films and labels
- Adhesive tapes
- Thermoformed trays and containers
Notably, using recycled BOPP can reduce heating energy consumption during thermoforming by up to 20%, particularly with darker recyclates due to superior heat absorption.
Summary: PE, PP, and BOPP Recycling Compared
AspectPE & PP FilmsBOPP Films
Key Challenges Ink removal, contamination, material tangling Metallised layers, ink complexity
Sorting Requirements By polymer and color Emphasis on base PP polymer
Recommended Equipment Two-stage extruder with compactor & filters Multi-stage extrusion with extended filtration
Ink Removal Via multi-zone degassing and filtration Enhanced with PU-ink compatibility
Pellet Quality Uniform, versatile, high-grade Odourless, colour-stable, process-friendly
Typical Applications Films, molded components Films, labels, thermoformed products
Energy/Cost Savings Reduced energy, optimized throughput Up to 20% thermoforming energy savings
Notes on Thin Film Recycling in Retail Channels
Retail-based collection programs for thin PE and PP films typically rely on the following:
- Drop-off bins for clean, dry films at participating stores.
- Mechanical recycling methods (shredding, washing, extrusion, pelletizing), mirror industrial processes but at smaller scales.
Final Thoughts
Effective recycling of highly printed PE, PP, and BOPP films hinges on integrating advanced multi-stage extruders with robust degassing and filtration systems. Technologies such as Repro-Flex Plus have transformed the feasibility of recycling complex materials, enabling high-quality pellet production that supports the circular economy and enhances environmental sustainability in plastic processing industries.
