ML Series Soft Plastic
Single Screw Pelletizing Line

Transform waste plastic materials into high-quality pellets with our advanced pelletizing technology. Efficient, reliable, and environmentally sustainable solution for plastic recycling.

Get Custom Quote

Why Choose ML Series?

High Efficiency

Advanced single screw design ensures optimal material processing with minimal energy consumption and maximum output quality.

Versatile Processing

Handles various soft plastic materials including film, silk, rope, bags, and non-woven fabrics with consistent results.

Eco-Friendly

Contributes to environmental sustainability by converting plastic waste into reusable raw materials for manufacturing.

Precision Control

Integrated cutting, plasticizing, and granulation system with precise temperature and speed control for optimal pellet quality.

Durable Design

Robust construction with high-quality components ensures long-lasting performance and minimal maintenance requirements.

Scalable Capacity

Multiple models available from 150-200 kg/h to 900-1200 kg/h to meet different production requirements.

How It Works

1

Material Input

Soft plastic waste materials are fed into the system through the belt conveyor for continuous processing.

2

Cutting & Crushing

Rotating knife in the compactor cuts and crushes the waste materials entering the bin for size reduction.

3

Melting & Plasticizing

High-speed rotating cutter head feeds material to the screw where it’s melted and plasticized under controlled temperature.

4

Pellet Formation

Molten plastic is extruded through the die and cut into uniform pellets by the cutting system.

5

Cooling & Collection

Finished pellets are cooled and collected, ready for use as raw materials in manufacturing processes.

See ML Series in Action

Watch our pelletizing line transform waste plastic materials into high-quality pellets with precision and efficiency.

Key Components & Their Functions

Compactor Unit

Pre-cuts, crushes, and densifies soft plastics, feeding a consistent flow of material to the extruder for optimal melting and plasticizing.

Single Screw Extruder

Specially designed screw and barrel for efficient melting of pre-compacted materials, with optimized L/D ratio for various soft plastics.

Pelletizing System

Precision cutting ensures uniform pellet size, suitable for various downstream applications. Water-ring pelletizing system provides consistent quality and cooling.

Technical Specifications

Model Compactor
Effective Volume (L)		 Motor Power (KW) Single Screw Extruder
Screw Diameter (mm)		 L/D Ratio Motor Power (KW) Capacity (kg/h)
ML85-100 300 37-45 85 28-33:1 55-75 150-200
ML100-120 500 55-75 100 10:1 90-110 250-350
ML130-150 800 90-110 130 28-33:1 132-160 400-550
ML150-160 950 110-132 150 10-12:1 185-200 500-650
ML160-180 1100 110-132 160 28-33:1 220-250 700-900
ML180-200 1100 160-185 180 12:1 280-315 900-1200

Equipment Gallery

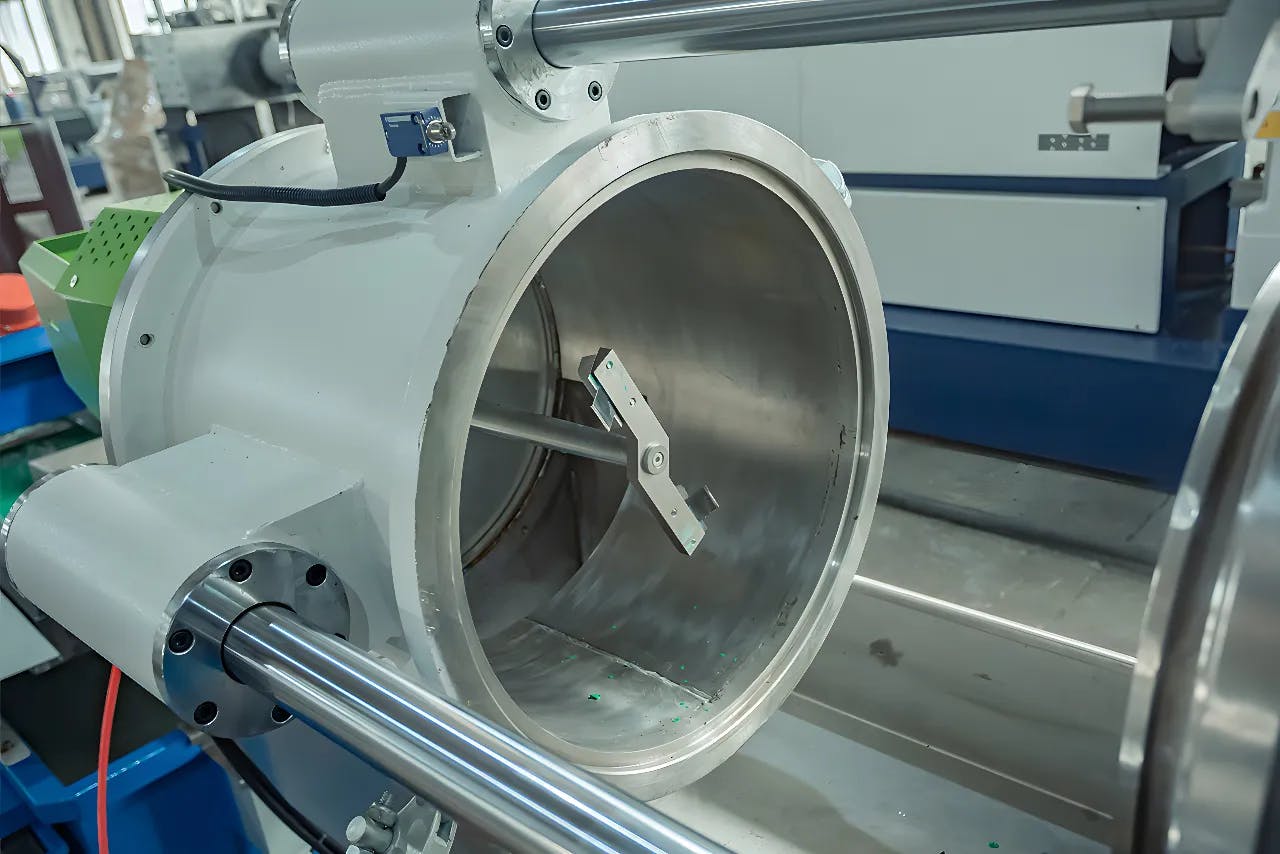

Cutting chamber of a recycling machine

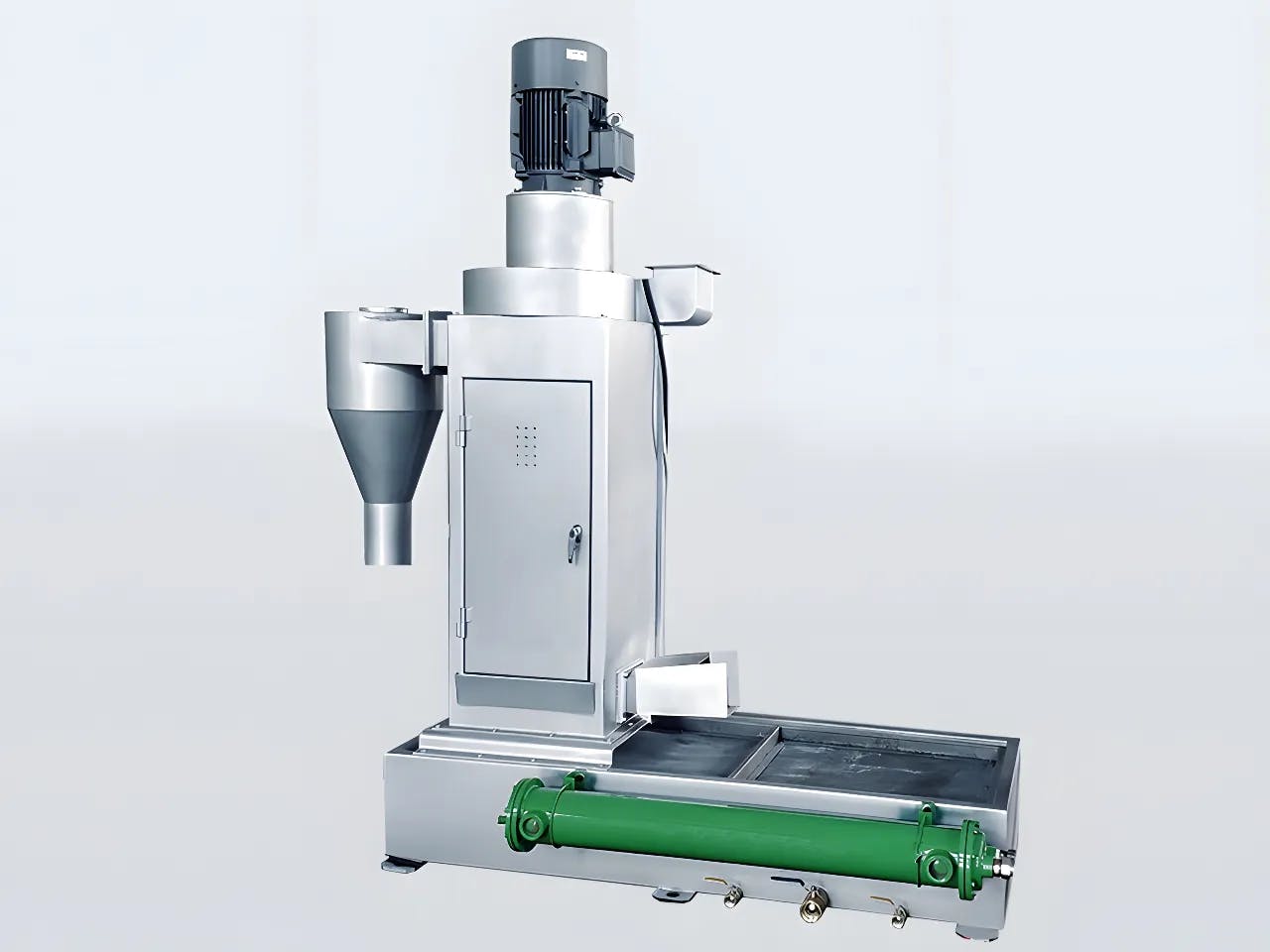

Vertical dewaterer equipment for recycling

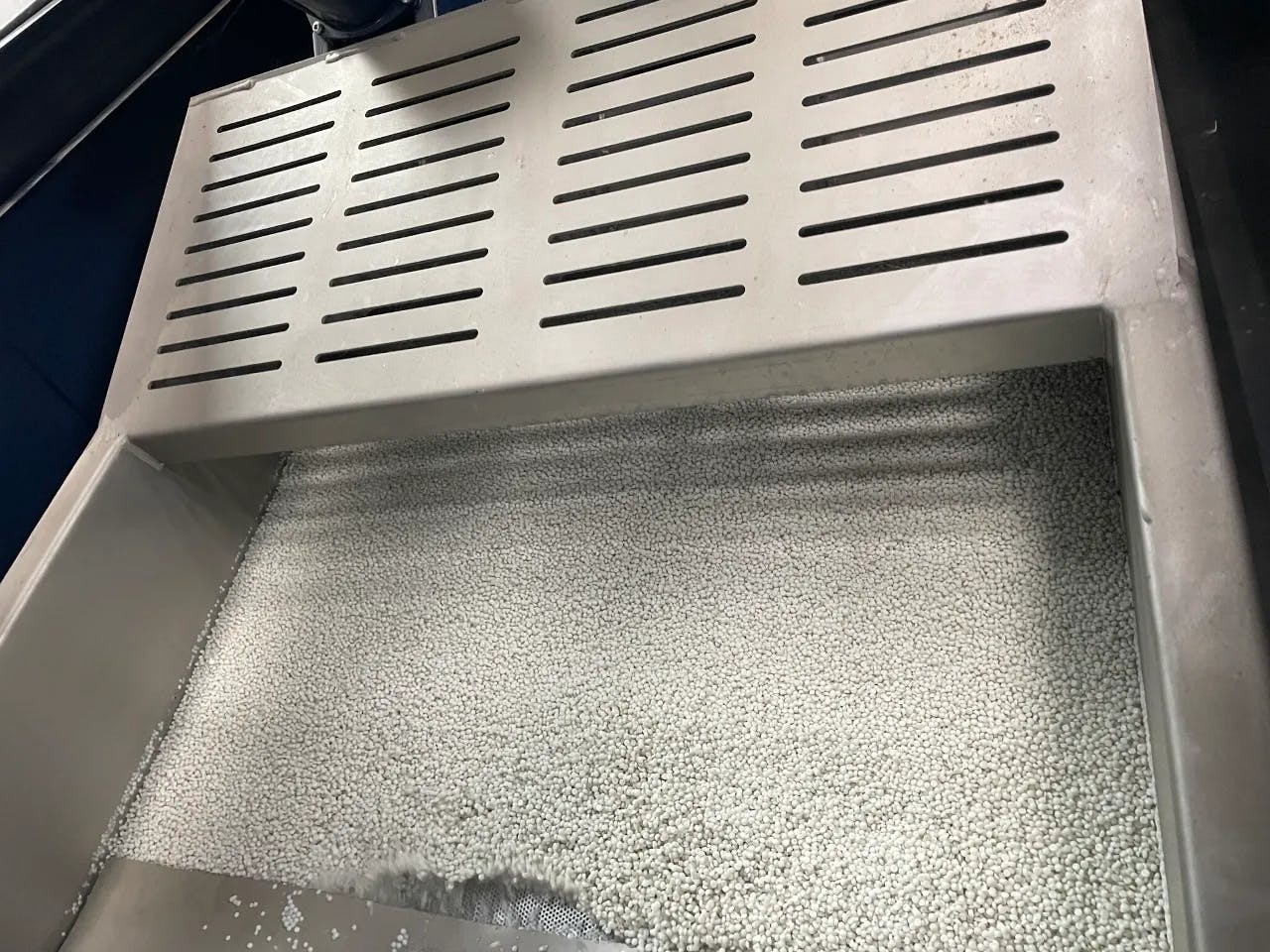

Vibrating mesh screen for material separation

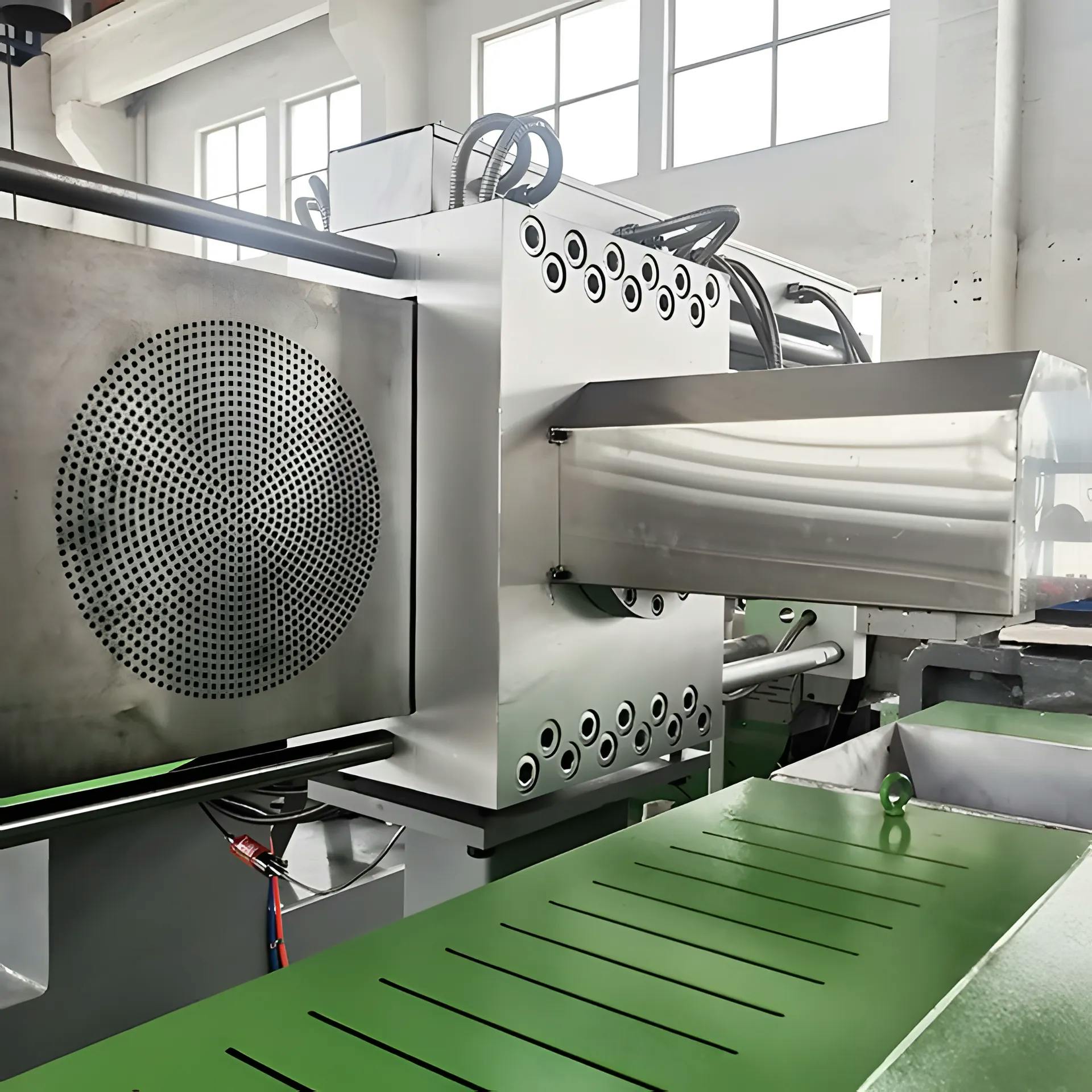

Automatic screen changer component

Get Custom Solution & Quote

Tell us about your requirements and we’ll provide a tailored solution with competitive pricing.

Contact Form Demo

Frequently Asked Questions

What types of plastic materials can be processed?
The ML Series can process various soft plastic materials including PE/PP films, shopping bags, agricultural films, woven and non-woven fabrics, ropes, and other flexible plastic waste materials.
What is the pellet quality and consistency?
Our pelletizing line produces uniform, high-quality pellets with consistent size and density. The integrated cutting and cooling system ensures excellent pellet formation suitable for direct use in injection molding and extrusion processes.
How much space is required for installation?
Installation space varies by model. Generally, you’ll need approximately 15-25 meters in length and 4-6 meters in width, plus additional space for material storage and operator access. We provide detailed layout drawings with each quote.
What maintenance is required?
Regular maintenance includes daily cleaning, periodic lubrication of moving parts, and inspection of cutting blades. Major components are designed for long service life with minimal maintenance requirements. We provide comprehensive maintenance training and support.
Do you provide installation and training services?
Yes, we offer complete installation services including on-site setup, commissioning, and operator training. Our technical team ensures proper installation and provides comprehensive training for safe and efficient operation.
What is the typical delivery time?
Standard models typically require 6-8 weeks for manufacturing and delivery. Custom configurations may require additional time. We provide detailed production schedules and regular updates throughout the manufacturing process.
